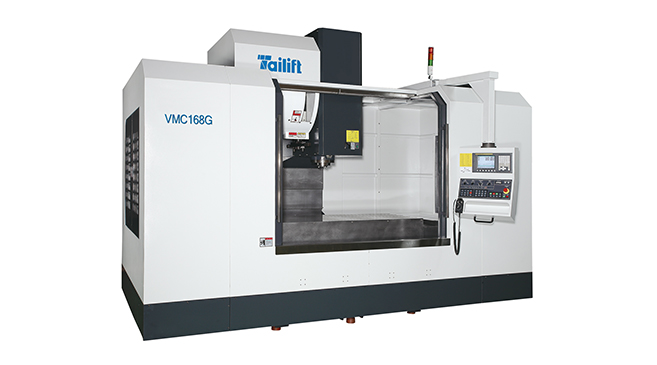

![Вертикальный обрабатывающий центр 3 Axes Box Ways](/upload/iblock/d84/vmc1.jpg)
Описание
![](/images/oborud/vmc-1-1.jpg)
- All major structural parts are manufactured from Taiwan’s high quality Meehanite cast iron, which are stress relieved for outstanding stability and minimum deformation.
- The double-wall box type base combined with oversized column design lead to higher rigidity and stability.
- Structural parts are manufactured from high quality Meehanite cast iron.
- Double-wall box type base.
- Oversized column structure.
![](/images/oborud/vmc-1-2.jpg)
The spindle runs in class P4 precision bearings and is dynamically balanced, which exhibits optimal dynamic accuracy with long lifespan.
![](/images/oborud/vmc-1-3.jpg)
The spindle runs in high precision bearings with 100 mm spindle diameter to upgrade the spindle's rigidity and heavy cutting capability.
![](/images/oborud/vmc-1-4.jpg)
The gear-drive spindle head provides two ranges of high low speed change. High torque output in low speed range allows for heavy cutting.
![](/images/oborud/vmc-1-5.jpg)

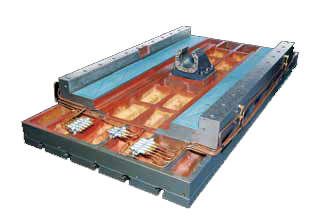

The lubrication system employs a volumetric type oil distributor and bronze oil tubes to resist acid / alkaline and corrosion.
Технические характеристики
Item | Utit | VMC-147G | VMC-168G | VMC-168B | VMC-188G | VMC-188B | |
---|---|---|---|---|---|---|---|
Travel | X-axis travel | mm | 1400 | 1600 | 1800 | ||
Y- axis travel | mm | 720 | 850 | 850 | |||
Z- axis travel | mm | 700 | 700 | 700 | |||
Spindle Nose to Table | mm | 200 ~ 900 | 150 ~ 850 | 150 ~ 850 | |||
Spindle Center to Column Face | mm | 800 | 930 | 930 | |||
Table | Working surface | mm | 1500 x 700 | 1800 x 820 | 1900 x 850 | ||
T-slots (width*number*pitch) | mm | 18 * 5 * 125 | 18 * 5 * 150 | 18 * 5 * 150 | |||
Max. table load | kg | 1800 | 2500 | 3000 | |||
Spindle | Spindle speed | rpm | 6000 | 6000 | 6000/10000 | 6000 | 6000/10000 |
Transmission | Gear | Gear | Belt/Dire. drive | Gear | Belt/Dire. drive | ||
Spindle nose taper | BT50 (BBT50 Opt.) |
BT50 (BBT50 Opt.) | BT50 (BBT50 Opt.) | ||||
Feed | Rapid traverse (X,Y,Z-axis) |
M/min | 16 / 16 / 12 | 16 / 16 / 12 | 16 / 16 / 12 | ||
Cutting feed rate | M/min | 1 ~ 12 | 1 ~ 12 | 1 ~ 12 | |||
Auto Tool Changer | Tool storage capacity | pcs | 24 (32 Opt.) | 24 (32 Opt.) | 24 (32 Opt.) | ||
Tool change time (tool to tool) |
sec. | 3.5 | 3.5 | 3.5 | |||
Max. tool diameter / adj. empty tool |
mm | 110 / 210 | 110 / 210 | 110 / 210 | |||
Max. tool length | mm | 300 | 300 | 300 | |||
Max. tool weight | kg | 15 | 15 | 15 | |||
Miscellaneous | Coolant tank capacity | L | 330 | 330 | 330 | ||
Electric power required | KVA | 35 | 35 | 35 | |||
Air pressure required | kg/c㎡ | 6 | 6 | 6 | |||

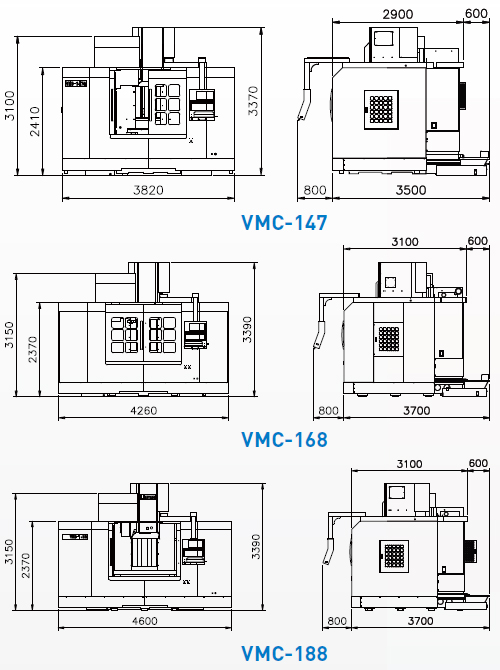

Machine dimensions (W*L*H) |
mm | 3820x4250x3370 | 4260 x 4420 x 3390 | 4600 x 4420 x 3375 | |||
Machine weight | kg | 13200 | 16500 | 15500 | 17000 | 16500 |
Аксессуары
Standard
- Tools, tools kit
- Working lamp
- Pilot lamp
- Coolant gun
- Chip spray
- Cutting coolant system
- Cutting air blast
- Spindle air blast
- Seat flushing system
- Auto lubrication system
- Auto power off
- RS-232
- Heat exchanger
- Spindle oil cooler
- Arm type ATC 24 tools
- Hinged type chip conveyor
- Leveling adjustment pads and bolt
- Full enclosed splash guard
- Machine, Electricity, operation manual
Optional
- Coolant through spindle device
- Linear scale
- Hydraulic system
- Oil mist collection device
- Rotary working table ( The 4th axis )
- Safety door
- Oil skimmer
- Auto tool length measurement
- Oil hole holder function
- Work piece measurement system
- Transformer
- Full enclosed splash guard
