Описание
- Adopts mechanic switch with forward/ reverse functions and longer service life with low damage.
- The arm is made of high-class cast-iron. Arm slide is under strick heat-treatment and grinding.
- 2HP motor can provide diverse speed selection under heavy-duty cutting.
- The main spindle is balanced by special spring. And is more durable than all traditional balance mechanism.
- The over-load protective devices can secure the operator against injury.
- Extra auxiliary dial for spindle feed depth indication. With this indicator, we can review the momental feed depth of spindle 1 through 210mm at any moment.

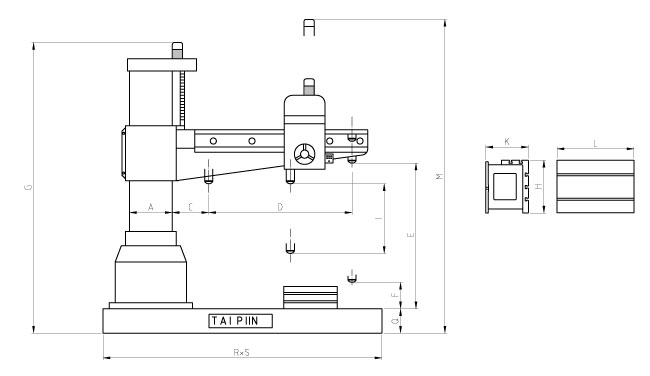

Технические характеристики

MODEL | TPR-720A | |||
---|---|---|---|---|
Dai.of column | 210 | A | ||
Distance from column surface to spindle center , Max | 750 | D+C | ||
Distance from column surface to spindle center , Min | 225 | C | ||
Travel of spindle head | 540 | D | ||
Distance from base surface to spindle end , Max | 1050 | E | ||
Distance from base surface to spindle end , Min | 260 | F | ||
Elevating height of Arm | 580 | E-F-I | ||
Effective area of box table | 600×445×380 | L×K×H | ||
Dimension of base | 1250x640x160 | R×S×Q | ||
Taper hole spindle | MT#4 | |||
Stroke of spindle | 210 | I | ||
R.P.M of spindle (rpm x steps) | 50HZ | 73~1247×6 steps | ||
60HZ | 88~1500×6 steps | |||
Feed of spindle (rev. x steps) | 0.05, 0.09, 0.15x3 steps | |||
Main motor (HP) | 2HP | |||
Elevating motor (HP) | 1HP | |||
Hydraulic clamping motor (HP) | ||||
Coolant equipment (HP) | 1/8 HP | |||
Machine height from floor (Max.) | 2160 | M | ||
Base + column height | 1820 | G | ||
Net weight (approx)kgs | 1175(kg) | |||
Shipping weight (approx)kgs | 1320(kg) | |||
Shipping dimensions (LxWxH) | 1630×810×2160 | |||
Capacity | Drilling | Stell | 32Φ | |
Cast iron | 50Φ | |||
Tapping | Stell | 25Φ | ||
Cast iron | 32Φ |
Аксессуары
Standard
- Adjustment tools (box included) 1 set
- Cooling device (pimp included) 1 set
- Lighting device (fluorescent lamp included) 1 set
- Box-type Work Table 1 set
Special Optionals/Tilt Tables
- Uni-tilt table tilts s full 90 degress. Calibrated indicator shows degree of tilt has accurately planed top
Dimensions (L x W x H)
- 810*710*610 m/m (Large size)
- Application:TPR-C1250A/C1600/1600H
- 510*510*590 m/m (small size)
- Application:TPR-720A-1600H

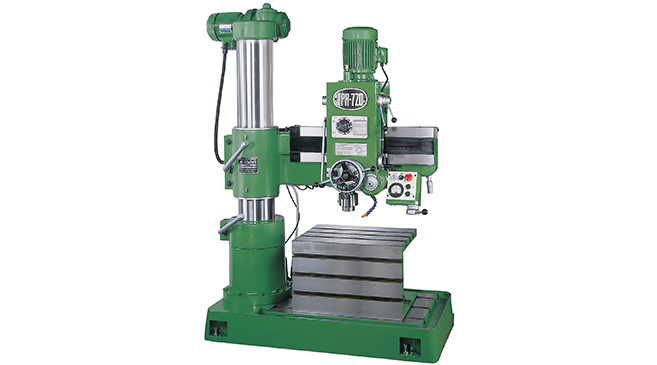

Обзор
- Lead Screw
- Column
- Main Motor (2HP)
- Electrical Control Box
- Hydraulic Pump Motor (1HP)
- Hydraulic Flow Distributing Value
- Cooling Pump (1/8 HP)
- Working Table
- Base
