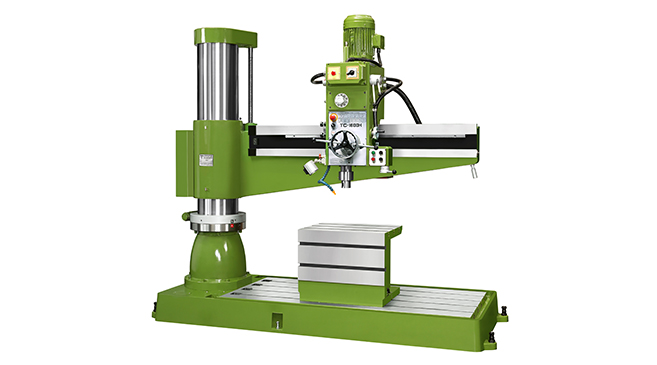

Радиально-сверлильный станок с гидравлическим зажимом TC-1600H

Описание Технические характеристики

The Radial Drill Arm adopts IC Timer with advantage of one bottom press, it can automatically release up/down movement, stop, and automatically clamping easy to operate. The spindle can still maintain in original set after the tools change.
Special arm elevating safety device is provided to prevent arm from falling down abruptly after year of usage. It will keep us from injurious dropping whenever the copper nut is excessively worn.
Column,Arm, Gear box can clamp at same time by a psuh button.

MODEL			TC-1600H
Dai.of column			320	A
Distance from column surface to spindle center , Max			1650	D+C
Distance from column surface to spindle center , Min			330	C
Travel of spindle head			1320	D
Distance from base surface to spindle end , Max			1405	E
Distance from base surface to spindle end , Min			465	F
Elevating height of Arm			670	E-F-I
Effective area of box table			630x500x500	L×K×H
Dimension of base			2550x970x200	R×S×Q
Taper hole spindle			MT#5
Stroke of spindle			270	I
R.P.M of spindle (rpm x steps)		50HZ	37-1253×12 steps
R.P.M of spindle (rpm x steps)		60HZ	44-1500×12 steps
Feed of spindle (rev. x steps)			0.06, 0.10, 0.20x3 steps
Main motor (HP)			5 (two speed motor)
Elevating motor (HP)			2HP
Hydraulic clamping motor (HP)			1 HP
Coolant equipment (HP)			1/8 HP
Machine height from floor (Max.)			2790	M
Base + column height			2190	G
Net weight (approx)kgs			3300 (kg)
S Shipping weight (approx)kgs			3650 (kg)
Shipping dimensions (LxWxH)			2700×1130×2430
Capacity	Drilling	Stell	50Φ
	Drilling	Cast iron	60Φ
	Tapping	Stell	40Φ
	Tapping	Cast iron	50Φ
