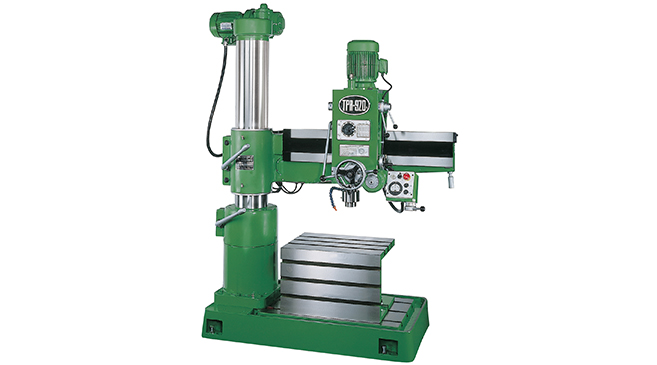

- Adopts mechanic switch with forward/ reverse functions and longer service life with low damage.
- The arm is made of high-class cast-iron. Arm slide is under strick heat-treatment and grinding.
- 2HP motor can provide diverse speed selection under heavy-duty cutting.
- The main spindle is balanced by special spring. And is more durable than all traditional balance mechanism.
- The over-load protective devices can secure the operator against injury.
- Extra auxiliary dial for spindle feed depth indication. With this indicator, we can review the momental feed depth of spindle 1 through 210mm at any moment.

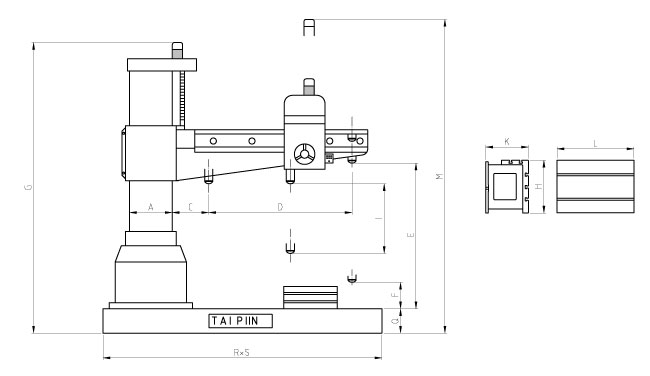

|Distance from column surface to spindle center , Max||950||D+C|
|Distance from column surface to spindle center , Min||210||C|
|Travel of spindle head||755||D|
|Distance from base surface to spindle end , Max||1225||E|
|Distance from base surface to spindle end , Min||385||F|
|Elevating height of Arm||625||E-F-I|
|Effective area of box table||600×445×380||L×K×H|
|Dimension of base||1260×640×160||R×S×Q|
|Taper hole spindle||MT#4|
|Stroke of spindle||210||I|
|R.P.M of spindle (rpm x steps)||50HZ||73~1247×6 steps|
|Feed of spindle (rev. x steps)||0.05, 0.09, 0.15x3 steps|
|Main motor (HP)||2HP|
|Elevating motor (HP)||1HP|
|Hydraulic clamping motor (HP)|
|Coolant equipment (HP)||1/8 HP|
|Machine height from floor (Max.)||2340||M|
|Base + column height||2020||G|
|Net weight (approx)kgs||1280(kg)|
|Shipping weight (approx)kgs||1400(kg)|
|Shipping dimensions (LxWxH)||1800×810×2210|
- Specifications are subject ot change without prior notice.
- Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
- Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
- Adjustment tools (box included) 1 set
- Cooling device (pimp included) 1 set
- Lighting device (fluorescent lamp included) 1 set
- Box-type Work Table 1 set
Special Optionals/Tilt Tables
- Uni-tilt table tilts s full 90 degress. Calibrated indicator shows degree of tilt has accurately planed top
Dimensions (L x W x H)
- 810*710*610 m/m (Large size)
- 510*510*590 m/m (small size)
- Lead Screw
- Main Motor (2HP)
- Electrical Control Box
- Hydraulic Pump Motor (1HP)
- Hydraulic Flow Distributing Value
- Cooling Pump (1/8 HP)
- Working Table
