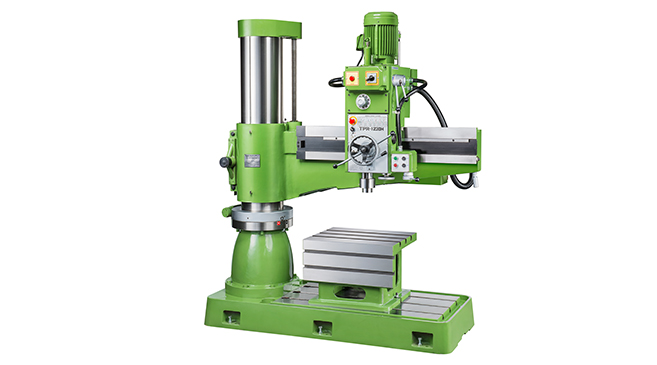

Радиально-сверлильный станок с гидравлическим зажимом TPR-1230H

The Radial Drill Arm adopts IC Timer with advantage of one bottom press, it can automatically release up/down movement, stop, and automatically clamping easy to operate. The spindle can still maintain in original set after the tools change.
Special arm elevating safety device is provided to prevent arm from falling down abruptly after year of usage. It will keep us from injurious dropping whenever the copper nut is excessively worn.
Column,Arm, Gear box can clamp at same time by a psuh button.

MODEL			TPR-1230H
Dai.of column			300	A
Distance from column surface to spindle center , Max			1230	D+C
Distance from column surface to spindle center , Min			330	C
Travel of spindle head			880	D
Distance from base surface to spindle end , Max			1360	E
Distance from base surface to spindle end , Min			467	F
Elevating height of Arm			620	E-F-I
Effective area of box table			635×520×415	L×K×H
Dimension of base			1720×715×185	R×S×Q
Taper hole spindle			MT#4
Stroke of spindle			270	I
R.P.M of spindle (rpm x steps)		50HZ	37-1253×12 steps
R.P.M of spindle (rpm x steps)		60HZ	44-1500×12 steps
Feed of spindle (rev. x steps)			0.05, 0.09, 0.15×3 steps
Main motor (HP)			3HP
Elevating motor (HP)			1HP
Hydraulic clamping motor (HP)			1HP
Coolant equipment (HP)			1/8 HP
Machine height from floor (Max.)			2670	M
Base + column height			2070	G
Net weight (approx)kgs			2100
Shipping weight (approx)kgs			2300
Shipping dimensions (LxWxH)			2030×990×2240
Capacity	Drilling	Stell	42Φ
	Drilling	Cast iron	55Φ
	Tapping	Stell	25Φ
	Tapping	Cast iron	38Φ

Uni-tilt table tilts s full 90 degress. Calibrated indicator shows degree of tilt has accurately planed top
