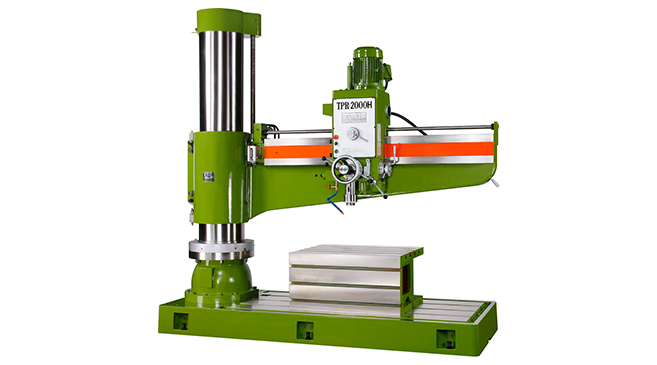

Радиально-сверлильный станок с гидравлическим зажимом TPR-2000H

Радиально-сверлильный станок с гидравлическим зажимом TPR-2000H

Радиально-сверлильный станок с гидравлическим зажимом TPR-2000H

Описание

  1. The Radial Drill Arm adopts IC Timer with advantage of one bottom press, it can automatically release up/down movement, stop, and automatically clamping easy to operate. The spindle can still maintain in original set after the tools change.
  2. Special arm elevating safety device is provided to prevent arm from falling down abruptly after year of usage. It will keep us from injurious dropping whenever the copper nut is excessively worn.
  3. Exclusively for gears type cycling ril pump is furnished to cool off precise gears inside gear box,and minimize excessive wear on gears to lowest extent.
  4. Friction type disc clutch is adopted to absorb inpact force caused by vertical movement of spindle, and effectively protect all transmission unit inside gear box. With the function of quick spindle return, this clutch will also help us to speed up our tapping operation.
  5. Automatic tool releasing device effectively increases tool changing.

Технические характеристики

MODEL TPR-2000H

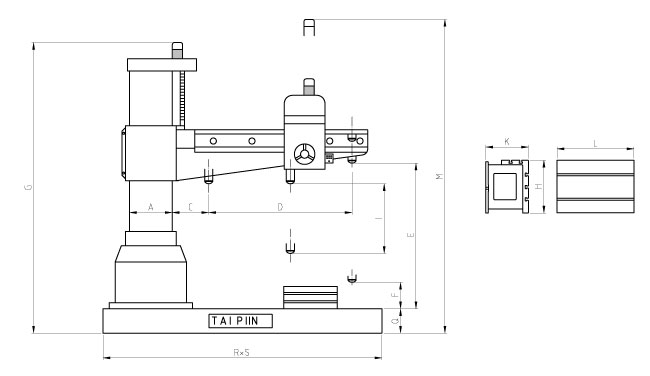

Dai.of column 432 A
Distance from column surface to spindle center , Max 2060 D+C
Distance from column surface to spindle center , Min 440 C
Travel of spindle head 1620 D
Distance from base surface to spindle end , Max 1950 E
Distance from base surface to spindle end , Min 395 F
Elevating height of Arm 1185 E-F-I
Effective area of box table 1000×800×500 L×K×H
Dimension of base 1185 R×S×Q
Taper hole spindle MT#5
Stroke of spindle 370 I
R.P.M of spindle (rpm x steps) 50HZ 29-1575×12 steps
60HZ 35-1890×12 steps
Feed of spindle (rev. x steps) 0.07~0.96×6 steps
Main motor (HP) 7-1/2HP
Elevating motor (HP) 2 HP 3 HP
Hydraulic clamping motor (HP) 1 HP
Coolant equipment (HP) 1/8 HP
Machine height from floor (Max.) 3520 M
Base + column height 3050 G
Net weight (approx)kgs 5600
Shipping weight (approx)kgs 6100
Shipping dimensions (LxWxH) 3200×1450×3300
Capacity Drilling Stell 65Φ
Cast iron 70Φ
Tapping Stell 50Φ
Cast iron 60Φ

Аксессуары

Standard

  • Adjustment tools (box included) 1 set
  • Cooling device (pimp included) 1 set
  • Lighting device (fluorescent lamp included) 1 set
  • Box-type Work Table 1 set

Special Optionals/Tilt Tables

  • Uni-tilt table tilts s full 90 degress. Calibrated indicator shows degree of tilt has accurately planed top

Dimensions (L x W x H)

  • 810*710*610 m/m (Large size)
  • Application:TPR-C1250A/C1600/1600H
  • 510*510*590 m/m (small size)
  • Application:TPR-720A-1600H

Обзор

  1. Lead Screw
  2. Column
  3. Main Motor (3HP)
  4. Electrical Control Box
  5. Hydraulic Pump Motor (1HP)
  6. Hydraulic Flow Distributing Value
  7. Cooling Pump (1/8 HP)
  8. Working Table
  9. Base
