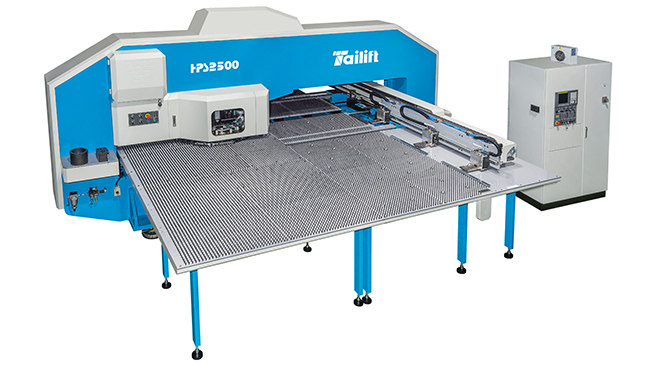

Координатно-вырубной пресс с сервогидравлическим приводом HPS2500

Координатно-вырубной пресс с сервогидравлическим приводом HPS2500

Координатно-вырубной пресс с сервогидравлическим приводом HPS2500

Описание

HPS Series

PRECISION AND SPEED EFFICIENCY
PROGRAMMABLE PUNCH/ RAM STROKE DISTANCE

  • Advanced German made Schneider Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
  • To control RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy faster punching speed.
  • HPS1250X is with 2490 ± 10mm X-Axis.

Технические характеристики

Item Unit HPS2500
Punching Capacity Tom 30
X Traverse Length mm 2490±10
Y Traverse Length mm 1525±10
Max Sheet Size mm 1525x4980
Max Sheet Thickness mm 6.35
Max Sheet Weight kg 110
X Axis Traverse Speed m/min 80
Y Axis Traverse Speed m/min 70
Max Traverse Speed m/min 105
Punch Speed at hist/min 360
25mm Between Holes
Nibbling Speed hist/min 600
Tools Type Thick turret
Max Punching Diameter mm 114.3
Number of Tool Stations 40
Number of Auto Index Stations 2/(DType)
Turret Rotating Speed rpm 40
Auto Index Rotationg Speed rpm 50
Ram Stroke Distance mm 0~31(Hydraulic servo axis)
Working Tables Size Brush
Number of Sheet Clamps 3
Power Supply KVA 35
Air Supply NL/min 250
Oil Tank Volume L 350
Air Pressure bar 5
Machine Size mm 4905x5140x2380
Net Weight (apporx) kg 13500
Size of Control Cabinet mm 1200x600x1900
CNC Controller FANUC Oi-PC
Number of Controllable Axes 5+1
Memory KB 256
Serial Interface RS232
Punching Accuracy mm ±0.1
  • Specifications are subjects to change without prior notice.
  • Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
  • Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

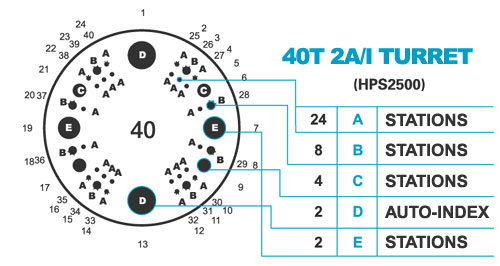

Инструментальная турель

A type 1/2" MAX diameter 12.75mm 24 ( 8 accept shaped tools )
B type 1-1/4" MAX diameter 31.75mm 8 ( 8 accept shaped tools )
C type 2" MAX diameter 50.80mm 4 ( 4 accept shaped tools )
D type 3-1/2" MAX diameter 88.90mm 2 AUTO. INDEX
E type 4-1/2" MAX diameter 114.30mm 2 ( 2 accept shaped tools )

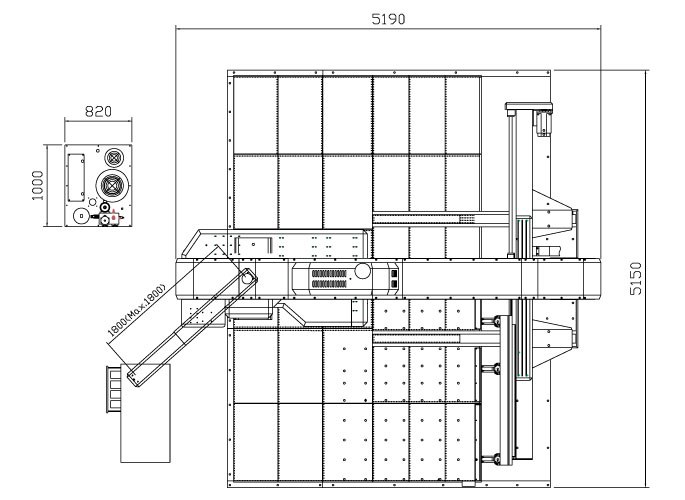

Чертёж
