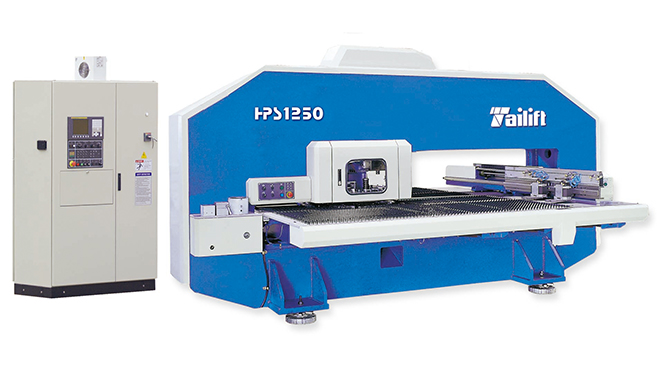

Координатно-вырубной пресс с сервогидравлическим приводом HPS1250

Координатно-вырубной пресс с сервогидравлическим приводом HPS1250

Координатно-вырубной пресс с сервогидравлическим приводом HPS1250

Описание

HPS Series

PRECISION AND SPEED EFFICIENCY
PROGRAMMABLE PUNCH/ RAM STROKE DISTANCE

  • Advanced German made Schneider Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
  • To control RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy faster punching speed.
  • HPS1250X is with 2490 ± 10mm X-Axis.

Технические характеристики

Item Unit HPS1250
Punching Capacity Tom 20
X Traverse Length mm 1250±10
Y Traverse Length mm 1250±10
Max Sheet Size mm 1250x2500
Max Sheet Thickness mm 6.35
Max Sheet Weight kg 110
X Axis Traverse Speed m/min 75
Y Axis Traverse Speed m/min 60
Max Traverse Speed m/min 96
Punch Speed at hist/min 360
25mm Between Holes
Nibbling Speed hist/min 600
Tools Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 36
Number of Auto Index Stations 2/(BType)
Turret Rotating Speed rpm 40
Auto Index Rotationg Speed rpm 50
Ram Stroke Distance mm 0~31(Hydraulic servo axis)
Working Tables Size Brush
Number of Sheet Clamps 2
Power Supply KVA 25
Air Supply NL/min 250
Oil Tank Volume L 350
Air Pressure bar 5
Machine Size mm 4455x2630x2100
Net Weight (apporx) kg 11000
Size of Control Cabinet mm 1200x600x1900
CNC Controller FANUC Oi-PC
Number of Controllable Axes 5+1
Memory KB 256
Serial Interface RS232
Punching Accuracy mm ±0.1
  • Specifications are subjects to change without prior notice.
  • Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
  • Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

Инструментальная турель

Atype (1/2") MAX diameter 12.75mm 18 (4 accept shaped tools)
Btype (1-1/4") MAX diameter 31.75mm 10 (10 accept shaped tools)
Btype (1-1/4") MAX diameter 31.75mm 2 AUTO. INDEX
Ctype (2") MAX diameter 50.8mm 2 (2 accept shaped tools)
Dtype (3-1/2") MAX diameter 88.9mm 2 (2 accept shaped tools)

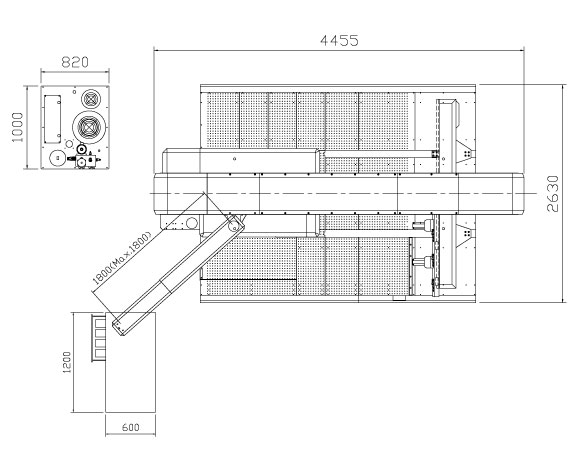

Чертёж
