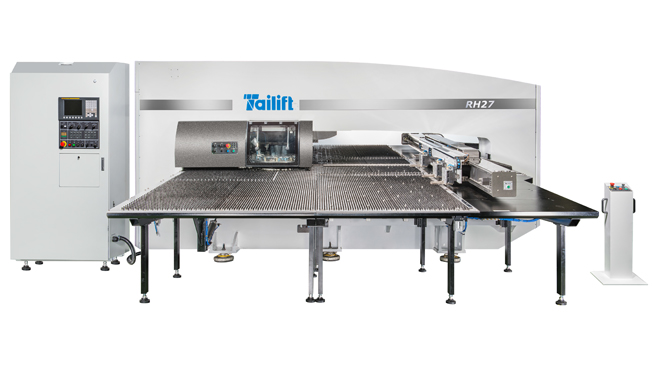

Координатно-вырубной пресс с гидравлическим приводом RH27

Координатно-вырубной пресс с гидравлическим приводом RH27

Координатно-вырубной пресс с гидравлическим приводом RH27

Описание

RH27 punch press machine is new generation Hydraulic series, inherited the features of high reliability and durability from series HP. With Germany H+L advanced servo-hydraulic system, its powerful punching performance is capable for punching big and thick sheets. Multi-functional for punching, forming, and tapping (option) significantly reduces stand-by time and increases material utilization. Furthermore, energy saving, high accuracy and high integrated assembly construction, effectively reduces maintenance cost.

Energy Saving System

Differential circuit system with High/Low voltage, minimize hydraulic unit, less than 30% hydraulic oil comparable typical hydraulic system. The compact size can reduce energy consumption and maintenance cost and save consumption cost.

Closed O Shape Frame Structure

High Rigidity & High Stability

The closed O shape frame structure is analyzed by the "Finite Element Analysis" software to simulate stress / strain conditions to enable the optimal structure design.

High Tensile Strength Steel Construction

The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.

Технические характеристики

Item Unit RH27
Runching Capacity Ton 30
X Traverse Length mm 2490±10
Y Traverse Length mm 1525±10
Max sheet Size mm 1525×4980
Max sheet Thickness mm 6.35
Max Mass of Material kg 110
X Axis Traverse Speed M/min. 80
Y Axis Traverse Speed M/min. 70
Max Traverse Speed M/min. 105
Punching Speed at 25mm pitch hits/min. 250
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 360
Tool Type   Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations   34
Numer of Auto Index Stations pcs(type) 2(B)
Turret Rotating Speed rpm 30
Auto Index Rotating Speed rpm 50
Ram Stroke Distance mm 0-31
Working Table   Brush+Ball
Number of Sheet Clamps pcs 3
Power Supply KVA 26
Air Supply NL/min 250
Air Pressure bar 5
Oil Tank Capacity Litre 180
Size of Control Cabinet mm 1100*535*1980
Number of Controllable Axis Axis 4+1
RAM Memory KB 512
Serial Interface   RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
  • Specifications are subjects to change without prior notice.
  • Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
  • Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

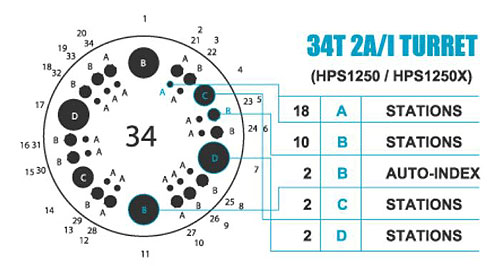

Инструментальная турель

Turret with 34 Stations

    • The turret is transmitted through the worm and worm gear mechanism.
      Two shafts are synchronously transmitted via a connecting rod for safe and dependable positioning.
    • The turret is designed with 34 stations, and accommodates various tool sizes from 1/2" to 3-1/4". Changing tool size is available upon customer request.
    • Each station can be fitted with various brand tools, such as Mate and Wilson.
    • Designed with two circular track stations.
    • Replaceable bushing easy to maintain.
Atype (1/2") MAX diameter 12.75mm 18 (4 accept shaped tools)
Btype (1-1/4") MAX diameter 31.75mm 10 (10 accept shaped tools)
Btype (1-1/4") MAX diameter 31.75mm 2 AUTO. INDEX
Ctype (2") MAX diameter 50.8mm 2 (2 accept shaped tools)
Dtype (3-1/2") MAX diameter 88.9mm 2 (2 accept shaped tools)

Аксессуары

Standard

  • Supporting Ball Set
  • Anti-vibration Foot Mounts
  • Sheet Distortion Sensor
  • Heavy-duty Clamp
  • Die Holder Brush
  • Repositioning Cylinder

Optional

  • CAD/CAM Software
  • Tapping System
  • Large Brush on Table
  • Block Lowering Device

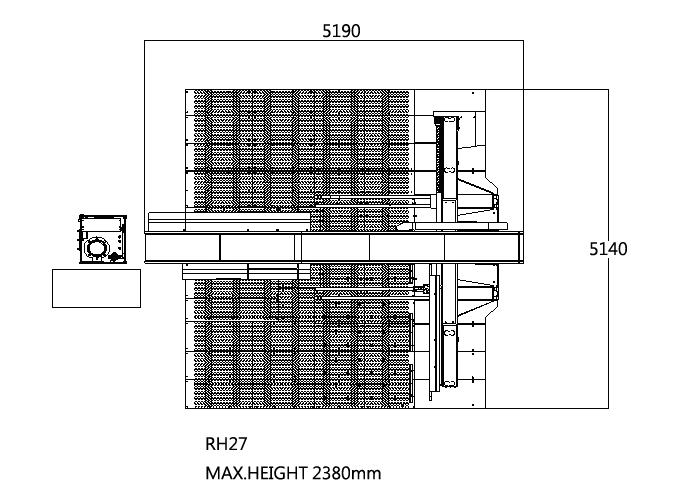

Чертёж
