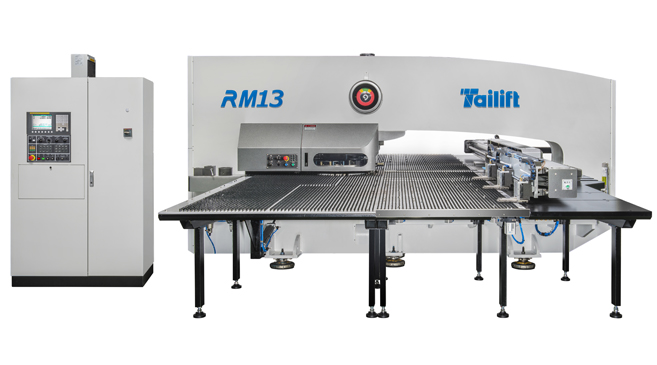

Координатно-вырубной пресс с механическим приводом RM13

Координатно-вырубной пресс с механическим приводом RM13

Описание

RM series is new generation, high accuracy, durable feature, the new design for lower turret, efficiently enhance the durable of concentricity and service life. The integration assembly, reduce floor space requirement and hydraulic, fulfill the ideal of ECO-friendly.

Closed O Shape Frame Structure

High Rigidity & High Stability

The closed O shape frame structure is analyzed by the "Finite Element Analysis" software to simulate stress / strain conditions to enable the optimal structure design.

High Tensile Strength Steel Construction

The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.


Transient State Analysis

Static Analysis

Model Analysis

Transient State Analysis

Compact hydraulic system

Efficiently reduce hydraulic pipes consumption, greatly boosting capacity usage.

Y axis chassis construction

Integrated with O frame, Y axis chassis construction approved by ANSYS and ensures high accuracy.

Технические характеристики

Item Unit RM13
Punching Capacity Ton 20
X Traverse Length mm 2490±10
Y Traverse Length mm 1250±10
Max sheet Size mm 1250x4980
Max sheet Thickness mm 6.35
Max Sheet Weight kg 110
X-Axis Travel m/min 80
Y-Axis Travel m/min 70
Max Traverse Speed m/min 105
Punching Speed at 25mm pitch hit/min 210
Nibbling Speed hit/min 350
Tool Type   Thick Turret
Max Punching Diameter mm 88.9
Number of Tool Station PCS 34
Number of Auto Index Station PCS/Type 2/(B) 2B
Turret Rotating Speed rpm 30
Auto Index Rotating Speed rpm 50
Ram Stroke mm 32
Working Table   Brush+Ball
Supporting Ball Set
Number of Clamp PCS 3
Power Supply KVA 18.72
Air Supply NL/min 250
Oil Tank Volume Litre 85
Air Pressure Bar 5
Machine Dimension(LxWxH) mm 5102*4687*2110
Machine Weight (approx.) kg 13000
Control Cabinet Dimension mm 1200*600*1900
CNC Controller   FANUC Oi-PD
Number of Controllable axis Axis 4
Memory Capacity KB 512
Serial Interface   RS232/RJ45/PCMCIA
Accuracy mm ± 0.1
  • Specifications are subjects to change without prior notice.
  • Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
  • Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

Инструментальная турель

Turret with 34 Stations

  • The turret is transmitted through the worm and worm gear mechanism.
    Two shafts are synchronously transmitted via a connecting rod for safe and dependable positioning.
  • The turret is designed with 34 stations, and accommodates various tool sizes from 1/2" to 3-1/4". Changing tool size is available upon customer request.
  • Each station can be fitted with various brand tools, such as Mate and Wilson.
  • Designed with two circular track stations.
  • Replaceable bushing easy to maintain.
Atype (1/2") MAX diameter 12.75mm 18 (4 accept shaped tools)
Btype (1-1/4") MAX diameter 31.75mm 10 (10 accept shaped tools)
Btype (1-1/4") MAX diameter 31.75mm 2 AUTO. INDEX
Ctype (2") MAX diameter 50.8mm 2 (2 accept shaped tools)
Dtype (3-1/2") MAX diameter 88.9mm 2 (2 accept shaped tools)

Аксессуары

Standard

  • Supporting Ball Set
  • Anti-vibration Foot Mounts
  • Sheet Distortion Sensor
  • Heavy-duty Clamp
  • Die Holder Brush
  • Repositioning Cylinder

Optional

  • CAD/CAM Software

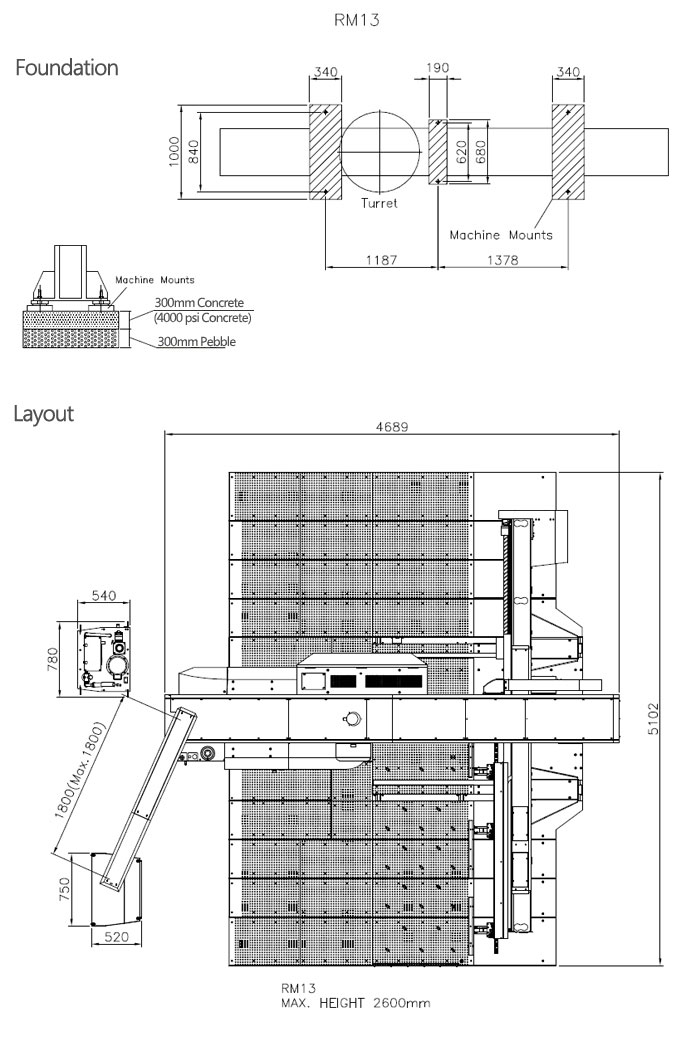

Чертёж
