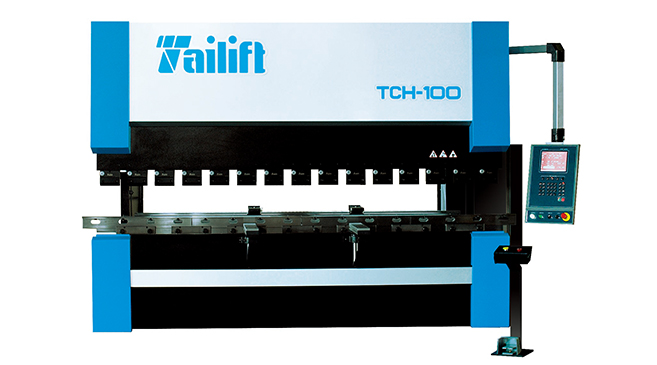

Гибочный пресс с ЧПУ. Серия TCH100

Гибочный пресс с ЧПУ. Серия TCH100

Описание Технические характеристики

Описание

Tailift CNC Servo-Hydraulic Press Brake is designed with double upward moving cylinders, allowing the sheet metal to remain at the same working height. This ensures bending accuracy and operational convenience.

Технические характеристики

Item	Unit	TCH-40	TCH-60	TCH-80	TCH-100	TCH-130	TCH-160	TCH-180	TCH-210
Tonnage	kN	400	600	800	1000	1300	1600	1800	2100
Bending Stroke	mm	150	150	150	150	215	215	215	215
Max. Bed-Press Beam Distance (F)	mm	485	485	485	485	550	550	550	550
Effective Open Height (D)	mm	320	320	320	320	450	450	450	450
Bending Length (A)	mm	1300	2000	2500	3120	3200	3200	3200	3200
Distance Between Side Frames (B)	mm	1000	1580	2080	2700	2700	2700	2700	2700
Throat ©	mm	400	400	400	400	400	400	400	400
Width of Bed/Table Width	mm	50	50	50	60	100	120	120	150
Operating Height (E)	mm	765	765	765	765	765	765	765	765
X axis travel (DNC600S)	mm	485	485	485	485	550	550	550	550
X axis speed	mm/s	0~500	0~500	0~500	0~500	0~500	0~500	0~500	0~500
R-axis travel	mm	200	290	290	290	290	290	290	290
Z-axis travel	mm	750	1250	1750	2350	2350	2350	2350	2350
Y axis lowering speed	mm/s	90	90	90	125	110	85	80	65
Y-axis raising speed	mm	75	75	75	75	105	95	110	100
Drive Motor	kW	11.2	11.2	11.2	11.2	14.9	14.9	18.6	18.6
Machine Weight	kgf	4000	6340	6800	8300	9950	9950	9950	9950
Oil tank capacity	Liter	220	250	250	310	310	310	310	310
Space Occupied (LxTxH)	mm	165016002460	223016002460	272016002460	340016002460	445016002460	445016002460	445016002460	445016002460

Specification are subject to changes without prior notice.
